INTERACTIVE ASSEMBLY

Wire the D latch

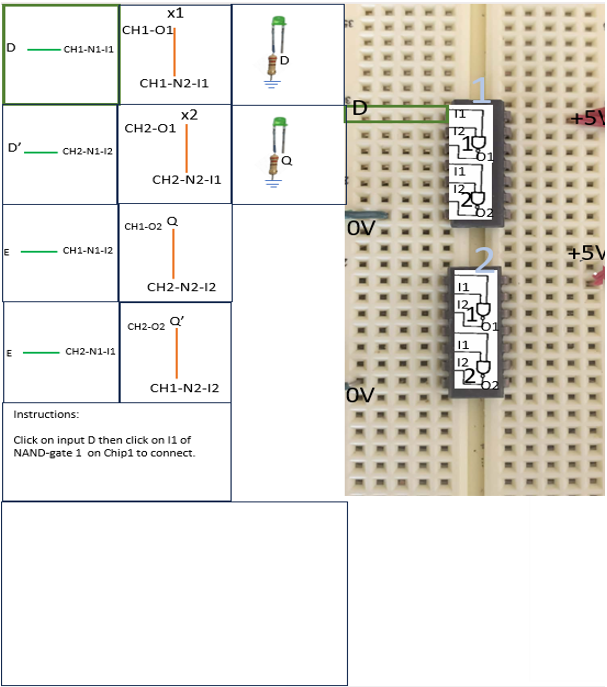

D latch breadboard assembly step 1

LIVE SIMULATION

Test the completed latch

Inputs

Set the data input and enable signal. When E = 1, Q follows D. When E = 0, Q holds its previous value.

Data (D)
Enable (E)

Physical controls connect when the Raspberry Pi control service is running.

CURRENT OUTPUT

Q0
Q′1

The latch is holding its initial value because E = 0.

D latch breadboard test state

PHYSICAL LAB CAMERA

Lab live stream

Watch the real circuit while you test the simulated latch.

Secure live view of the physical lab hardware.

ASSESSMENT

Check your understanding
